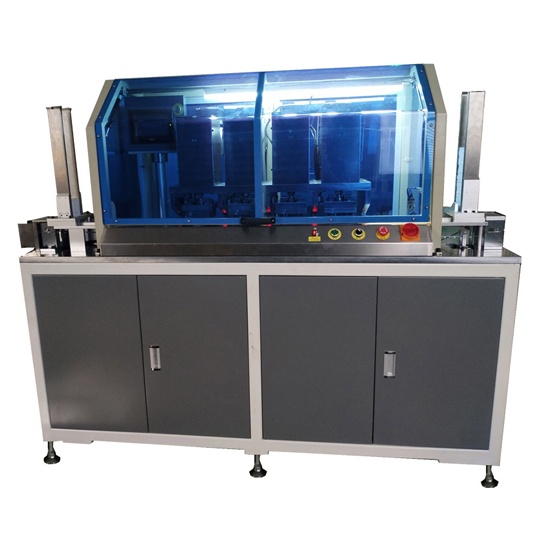

SIM Card punching machine(4FF)

1. Controlled by Servo motor, low noise and stable.
2. Double cards detection function
3. Module detection function makes sure the correct card direction when transfer.
4. Special location design can punch different cards with special shapes.
5. Sensors added on the card centering system ensure high accuracy of cutting and punching

6. Two magazine feeding designs; cards can be collected automatically.
7. Cards transferred through belt driven by servomotor ensure the safety and stability of the machine.
8. Personalized software design. Machine can be empty automatically and sample cards freely
9. Special feeding design avoids unloading double cards caused by static electricity.

Specification
Size:1400mm*700mm*1300mm
Weight:500kgs
Power supply:AC220V 50/60HZ
Power: 1.5 KW
Air pressure:6kg/cm
Air supply:80L/min
Control: servo system + PLC
Precision: X and Y 0.0125mm
Accuracy:0.01mm
Production:4000~4500pc/h
